3600-12E PIONEER/PROVIDER
For Hiller Model 12E Helicopters

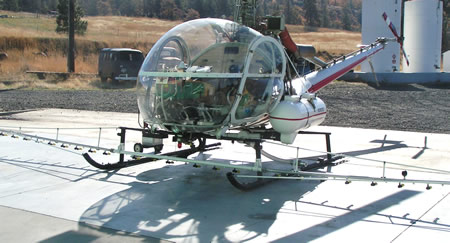

Made for Hiller model 12E helicopters, the 3600-12E Pioneer/Provider features
light-lift external mounted fiberglass aerodynamic side-tanks that attach with
quick-release pins for fast and easy installation.
System Components
- Tank Assembly: External side-mounted fiberglass aerodynamic side-tanks. Tank attaches with quick-release pins for fast and easy installation.
- Pump: Hydraulic motor driven, flow: 100 GPM at 30 PSI.
- Boom Valve/Flow Control: Boom valve puts negative pressure on boom in OFF position, Flow Control allows in flight boom pressure adjustments.
- Cyclic Control: Allows pilot control of pumps, boom valve, emergency dump and flow control.
- Boom Assembly: Outboard booms can be rotated for desired nozzle position.
Specifications
| Net Weight | 136 lbs. |
| System Capacity | 110 gallons |
| Boom Span | 32 feet |
| Swath | 40-60 feet |
| Air Speed VNE | 80 MPH |
| Power Requirements | 24 VDC |
| Amperage Draw | 15 amps |
| Nozzles | 62 total |
