4500-206 BROADCASTER
For Bell Model 206B Helicopters
FAA STC No. SR01429SE
EASA STC Pending

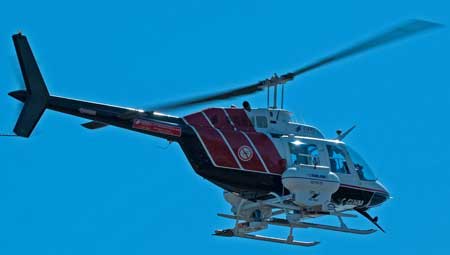

This hard mount, lightweight broadcaster for Bell model 206B helicopters
features external mounted fiberglass side tanks, level sensors with cockpit
display, and micro-adjustable metering to allow accurate and infinite flow rates.
System Components
- Tank Assembly: External mounted fiberglass side tanks mounted to aircraft hard-points and cargo hook attachments with large loading ports. Uses quick-disconnect pins for easy removal/installation.
- Level Sensors: Sensor inside tank with cockpit display.
- Metering Gate: Micro-adjustable metering allows accurate and infinite flow rates.
- Cyclic Control: Provides cockpit control and readout of tank levels, gate position and operating status. Pilot has control of individual hoppers or both simultaneously.
Specifications
| Net Weight | 237 lbs. |
| Gross Weight | 1200 lbs. |
| System Capacity | 20 cu ft. |
| Flow Rate | 1 to 150 lbs/acre |
| Maximum Payload (per tank) | 400 lbs. |
| Amperage Draw | 95 amps |
| Power Requirements | 24VDC |
| VNE | 80 knots |
