3900-350B2 INNOVATOR II
For Eurocopter Model AS350 Helicopters / Airbus Model H125
FAA STC No. SR01410NY
EASA I.M.R.S. 01018
CAAC Approval Pending

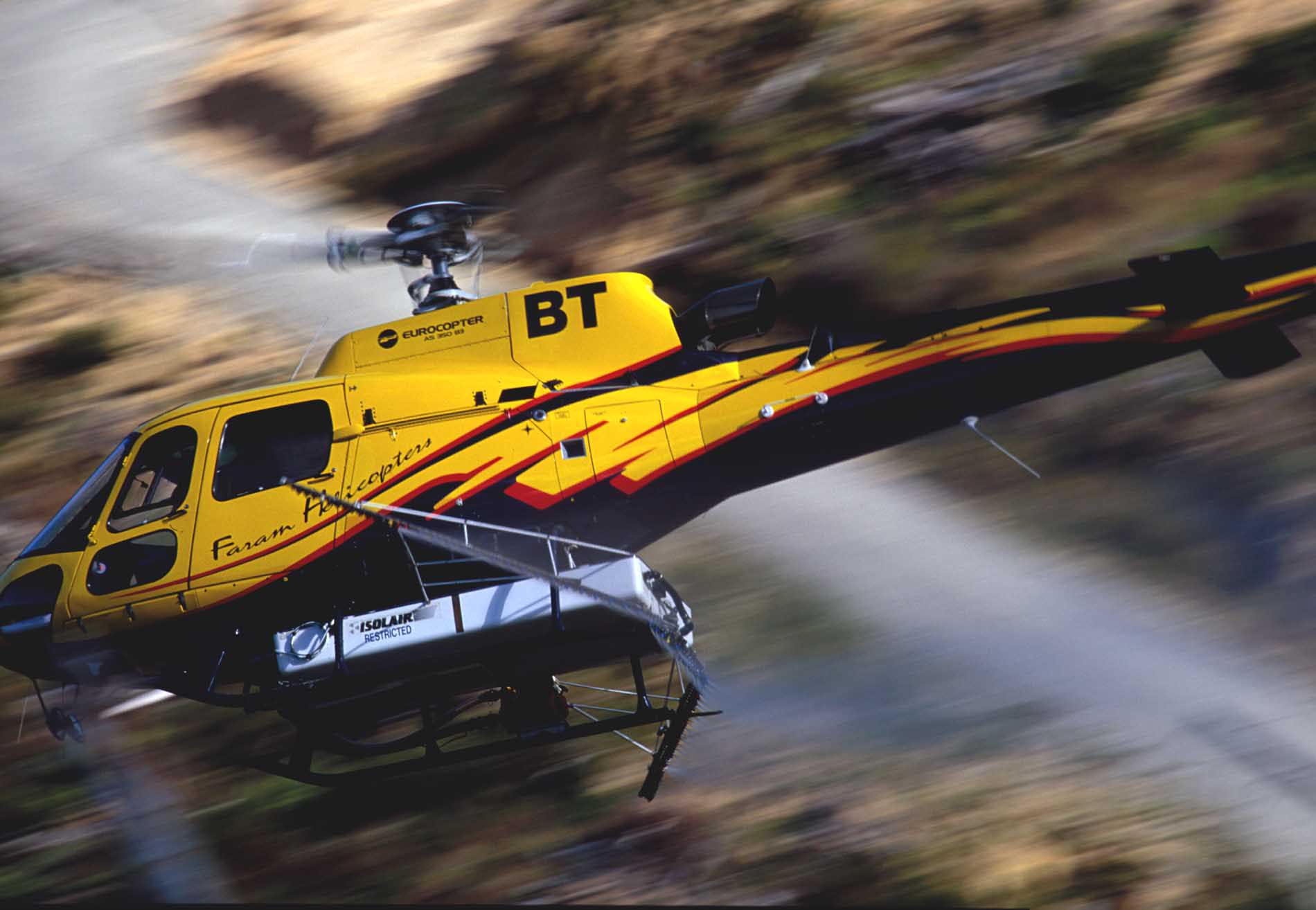

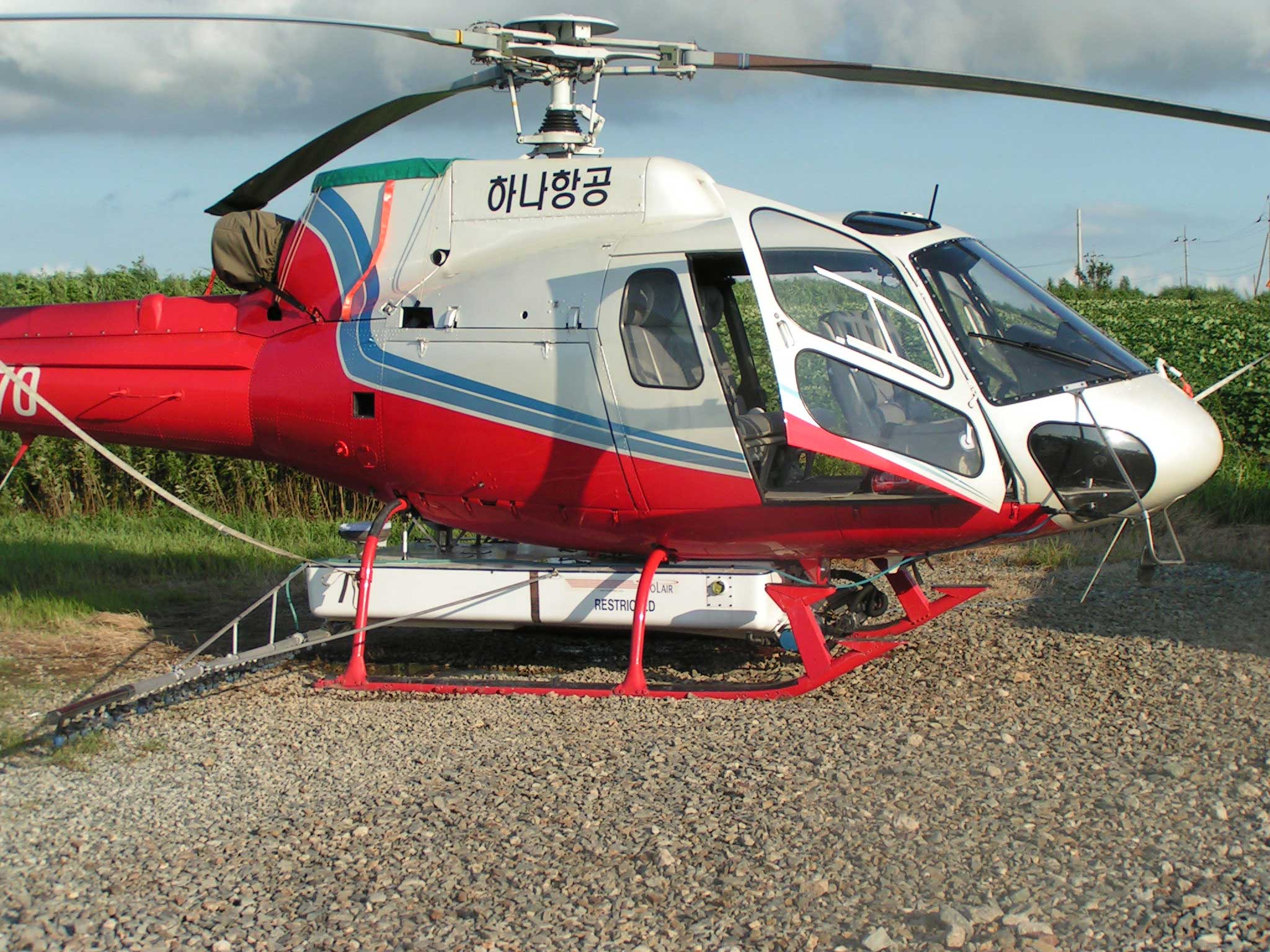

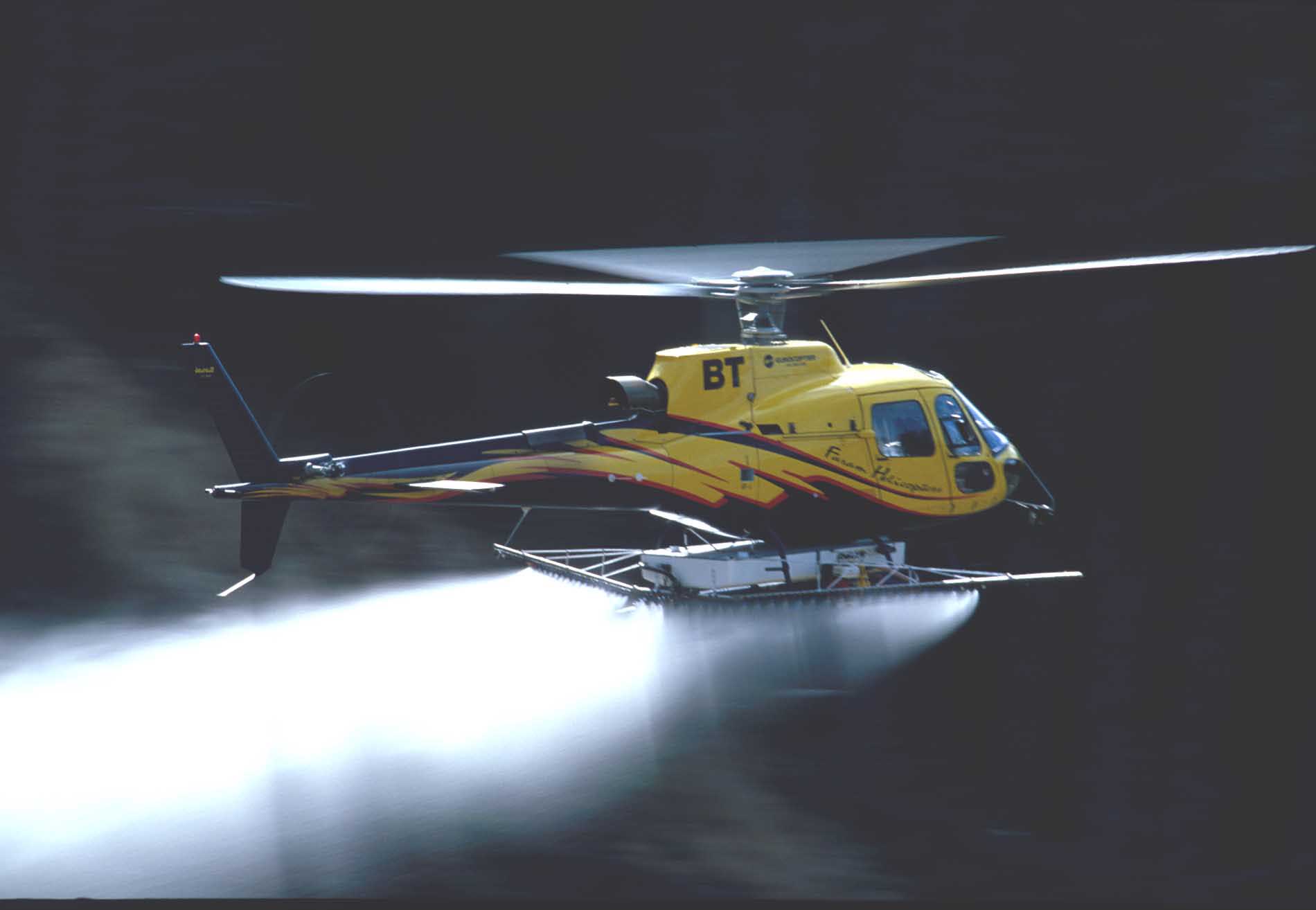

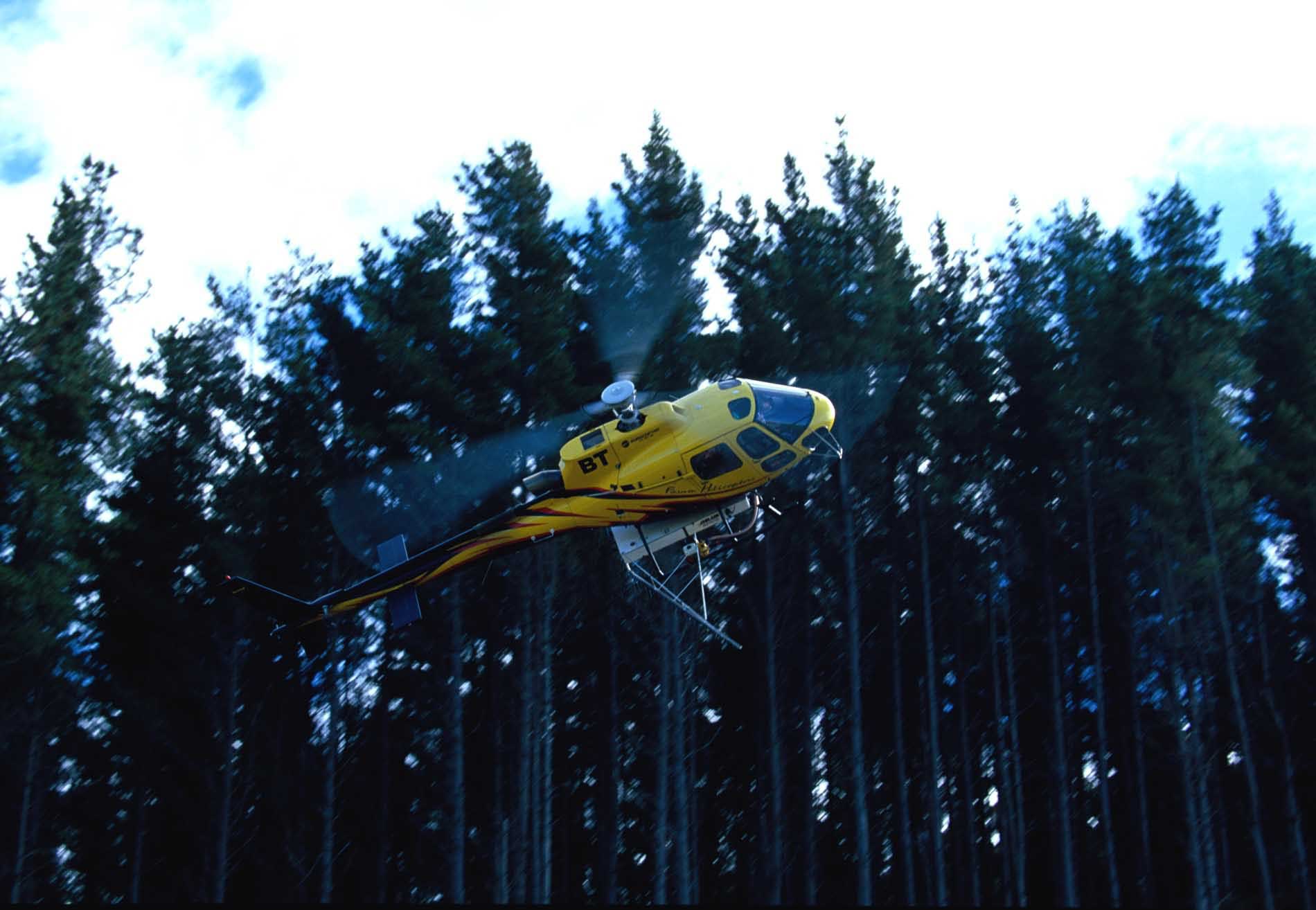

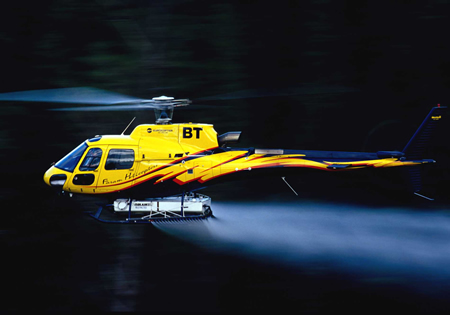

Designed for Eurocopter model AS350 helicopters, this medium-lift tank
assembly is external cross tube-mounted fiberglass with an aluminum
aerodynamic tank. Cyclic control allows pilot control of flow, pumps,
boom valve, and emergency dump.
System Components
- Tank Assembly: External cross tube mounted fiberglass and aluminum aerodynamic tanks. Tank attaches with quick-release pins for fast and easy installation.
- Pump: Electric motor driven, flow: 100 GPM at 30 PSI.
- Boom Valve/Flow Control: Boom valve puts negative pressure on boom in OFF position, Flow Control allows in flight boom pressure adjustments.
- Cyclic Control: Allows pilot control of pumps, boom valve, emergency dump and flow control.

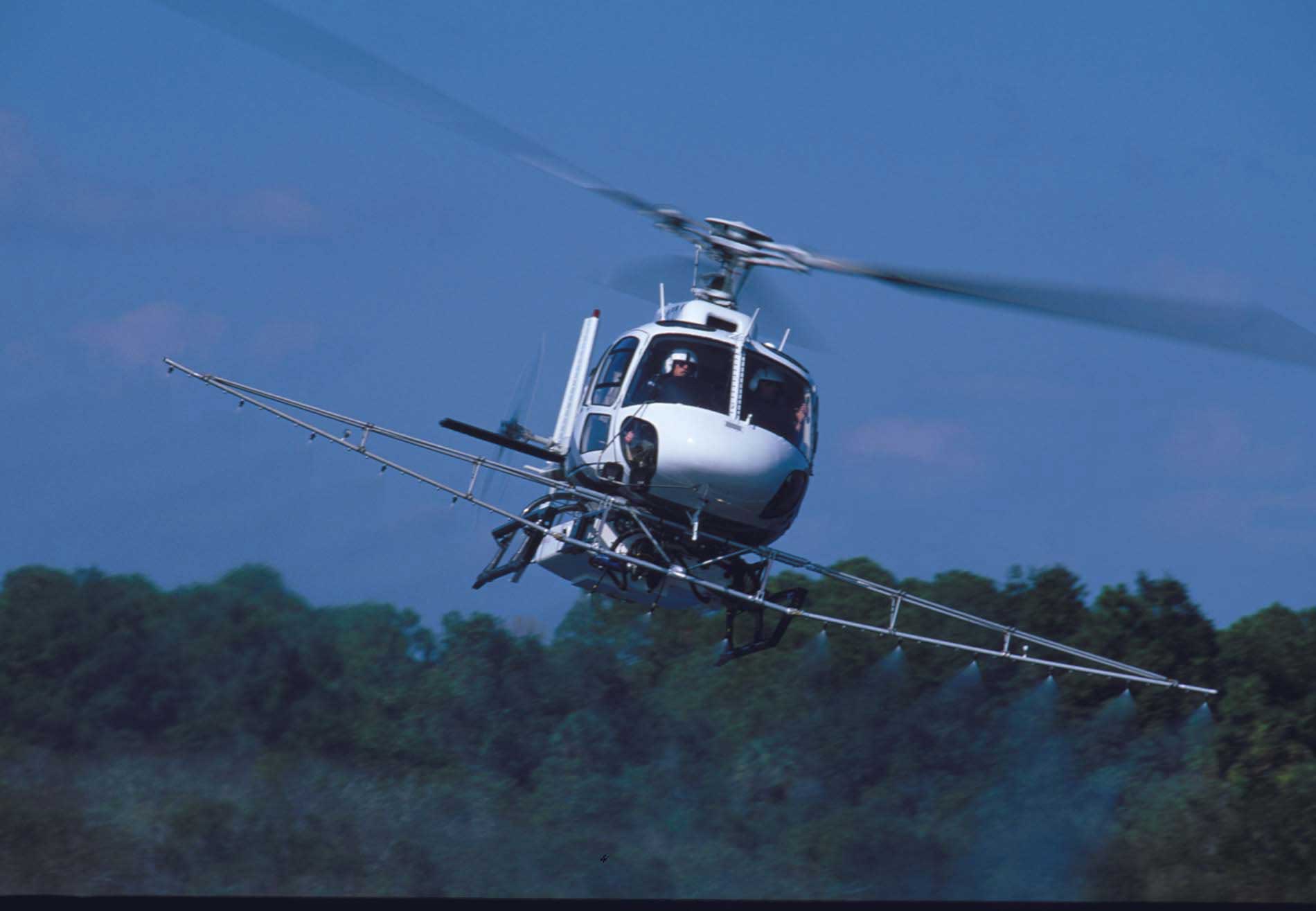

- Boom Assembly: Outboard booms can be rotated for desired nozzle position.
Specifications
| Net Weight | 274 lbs. |
| System Capacity | 270 gallons |
| Boom Span | 29 feet |
| Swath | 40-60 feet |
| Air Speed VNE | 103 MPH |
| Power Requirements | 28 VDC |
| Amperage Draw | 90 amps |
| Nozzles | 56 total |
