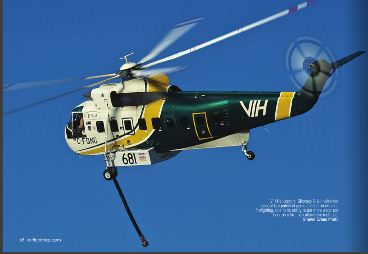

For Sikorsky Model S61 A & N Model Helicopters

System Components

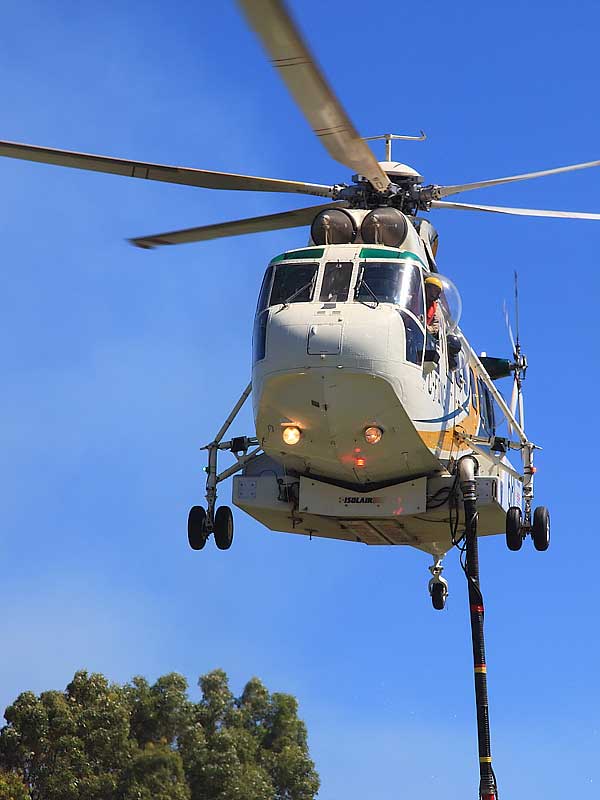

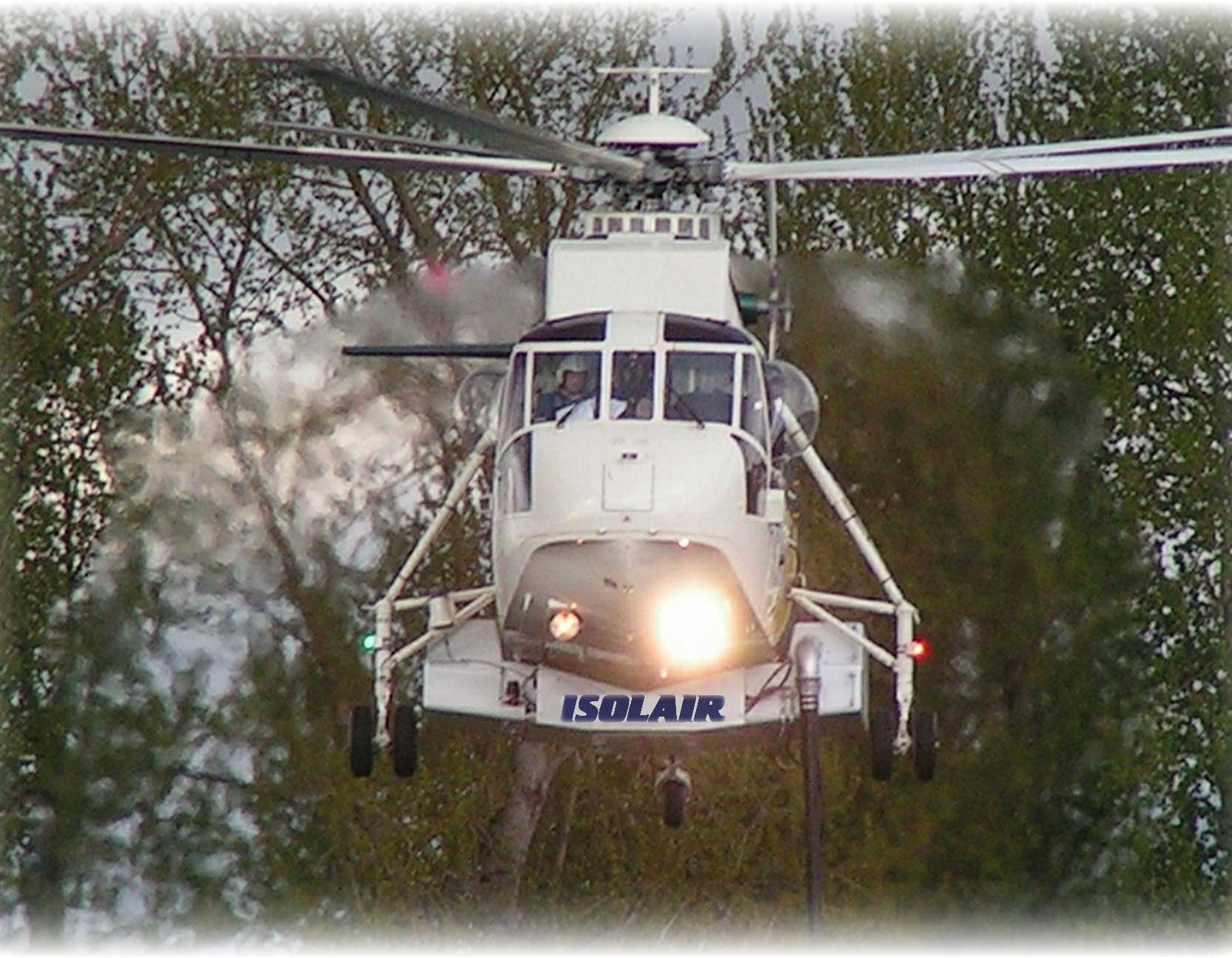

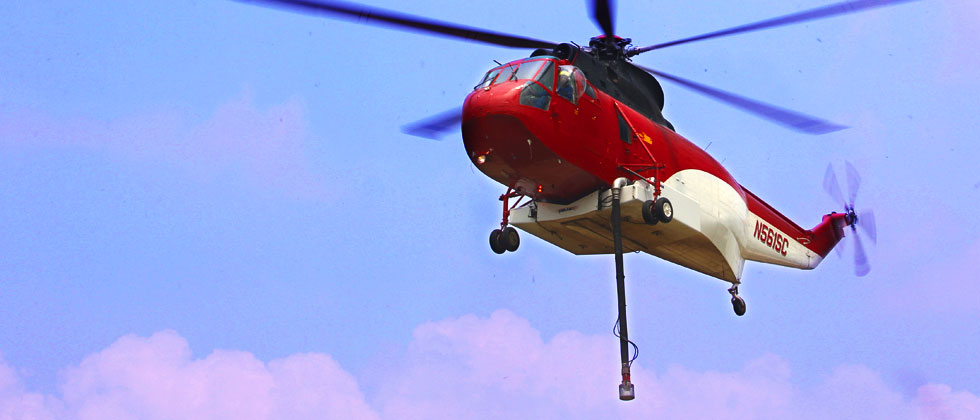

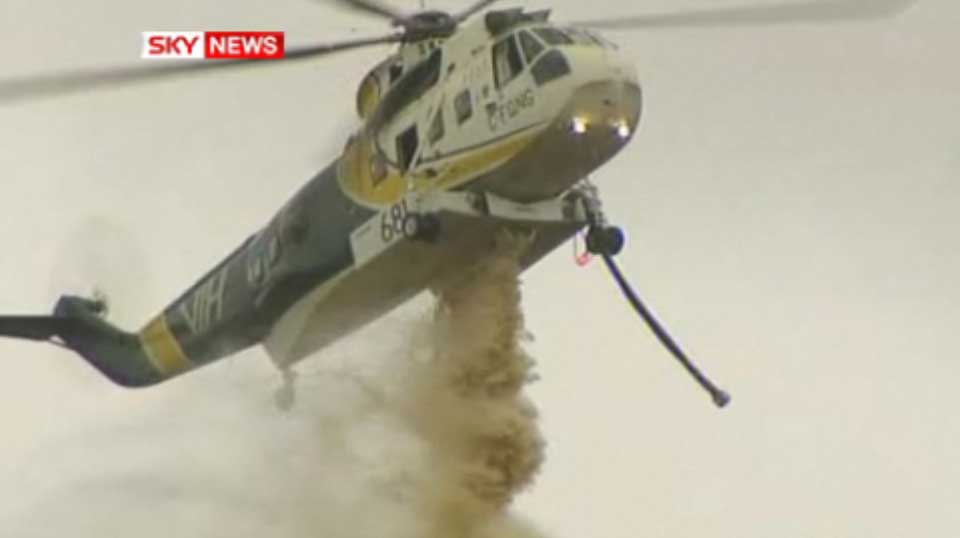

  • Tank Assembly: External belly-mounted fiberglass and aluminum tank mounted to aircraft hard-points, with internal chemical tanks.

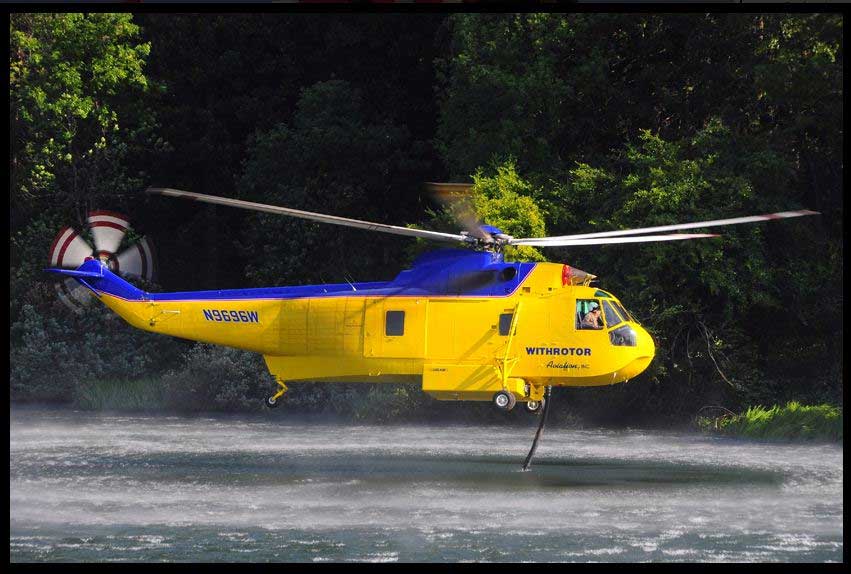

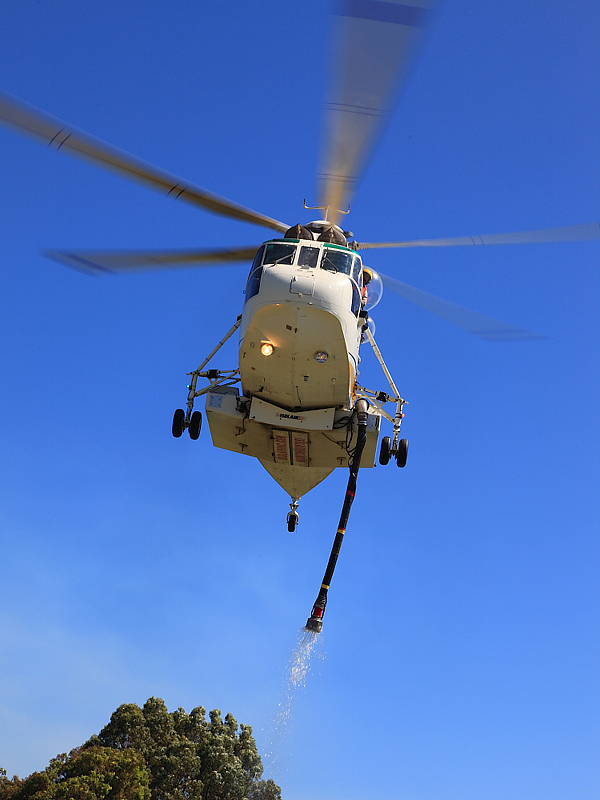

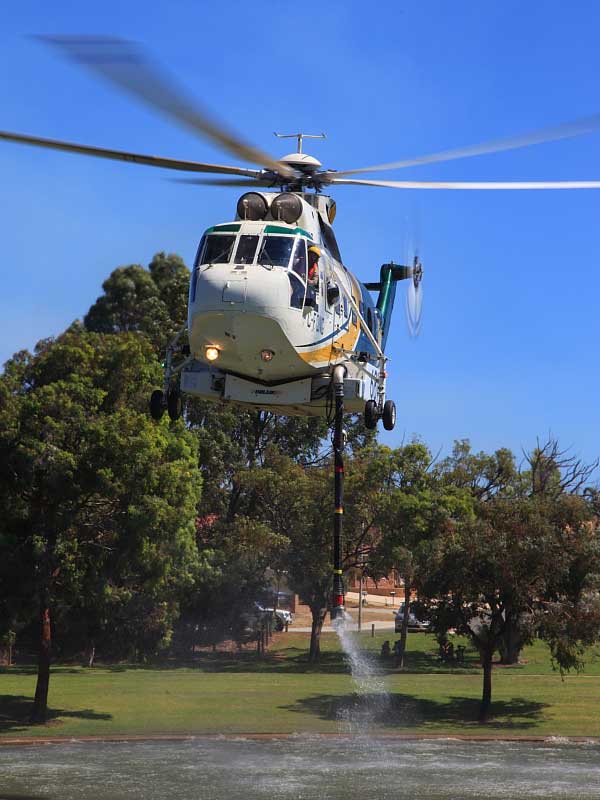

  • Refill Pump: Hydraulically driven assembly with 12′ refill hose.

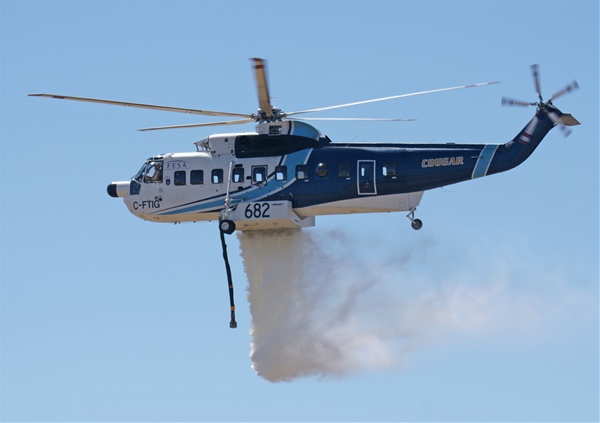

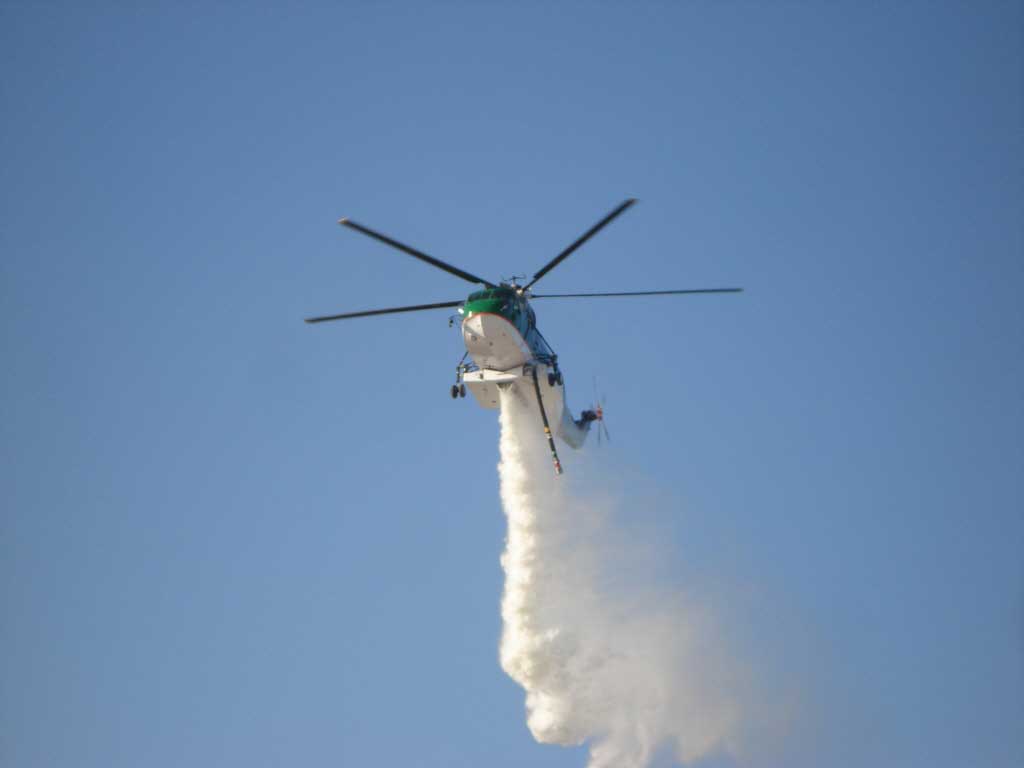

  • Dump Doors: Electrically actuated, hydraulically operated. Fail safe system; doors will open with the loss of electrical power.
  • Collective Control/Display Unit: Allows pilot to control dump volume and drop length, mixing and door control. Digital readout of tank contents for easy monitoring.
4600-S61 Eliminator
Download Brochure


Net Weight 792 lbs.
Gross Weight 9132 lbs.
System Capacity 1000 gallons
Chemical Capacity 90 gallons
Amperage Draw (refill) 35 amps
Power Requirements 24VDC
Hover Fill Rate (max) 1200 GPM
Hover File Time(probe submerged) 45-55 secs.
VNE (water drop) 70 knots
VNE (tank empty, pump stored) 110 knots
