3700 Innovator II

For MD 500 Series Helicopters - FAA STC No. SH3339NM

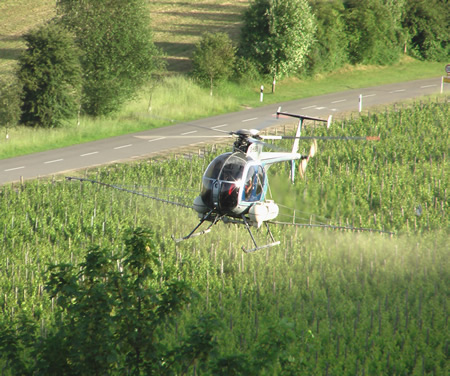

The MD500 series helicopter requires a bullet-shaped side tank system for its
everyday applications in the agricultural fields using pesticides, herbicides,
or insecticides.

System Components

  • Tank Assembly: External side-mounted fiberglass aerodynamic tanks. Tank attaches with quick-release pins for fast and easy installation.
  • Pump: Electric motor driven, flow: 100 GPM at 30 PSI.
  • Boom Valve/Flow Control: Boom valve puts negative pressure on boom in OFF position, Flow Control allows in flight boom pressure adjustments.
  • Cyclic Control: Allows pilot control of pumps, boom valve, emergency dump and flow control.
  • Boom Assembly: Outboard booms can be rotated for desired nozzle position.
3700 Innovatpr II
3700 Innovator II
Download Brochure


Specifications

Net Weight 153 lbs.
System Capacity 145 US gal.
Boom Span 29 ft.
Swath 40-60 ft.
Air Speed VNE 124 MPH
Power Requirements 28 VDC
Amperage Draw 90 amps
Nozzles 56 total
