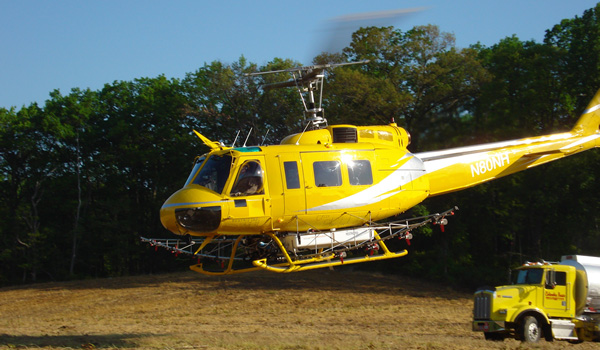

3900-205 INNOVATOR II
For Bell Model 205/212/UH-1H Helicopters
This medium lift system includes external belly-mounted fiberglassand aluminum tank, and hydraulic or electric motor driven pump.
Flow control allows in-flight boom pressure adjustments.
System Components
- Tank Assembly: External belly-mounted fiberglass and aluminum aerodynamic tank mounted to external hardpoints. Tank attaches with quick-release pins for fast and easy installation.
- Pump: Hydraulic or Electric motor driven, flow: 100 GPM at 30 PSI.
- Boom Valve/Flow Control: Boom valve puts negative pressure on boom in OFF position, Flow Control allows in flight boom pressure adjustments.
- Cyclic Control: Allows pilot control of pumps, boom valve, emergency dump and flow control.
- Boom Assembly: Outboard booms can be rotated for desired nozzle position.
Specifications
| Net Weight | 400 lbs. |
| System Capacity | 350 gallons |
| Boom Span | 42 feet |
| Swath | 60-150 feet |
| Air Speed VNE | 90 MPH |
| Power Requirements | 28 VDC |
| Amperage Draw | 125 amps |
| Nozzles | 67 total |
